Asus ProArt StudioBook 17 H700GV RTX 2060, Xeon E-2276M

Ausstattung / Datenblatt

Asus ProArt StudioBook 17 H700GV RTX 2060, Xeon E-2276M
Asus ProArt StudioBook 17 H700GV RTX 2060, Xeon E-2276M
Prozessor
Intel Xeon E-2276M 6 x 2.8 - 4.7 GHz, Coffee Lake-H
Grafikkarte
NVIDIA GeForce RTX 2060 Max-Q - 6 GB VRAM, GDDR6
RAM
32 GB
, DDR4-2666
Bildschirm
17.00 Zoll 16:10, 1920 x 1200 Pixel 133 PPI, IPS, 97% DCI-P3 color gamut, 8-bit color, 1000:1 contrast ratio, 300 nits, spiegelnd: nein
Massenspeicher
Up to 4TB (PCIe® NVMe Gen 3 x4, M.2 SSD x 2)
Anschlüsse

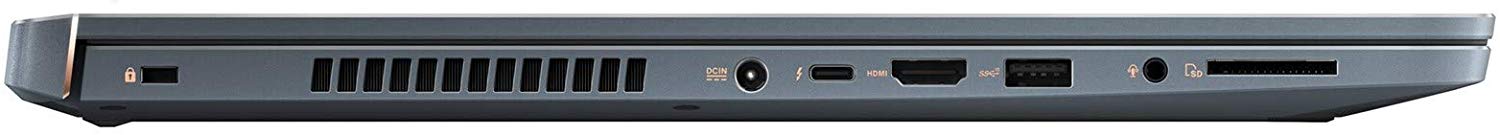

3 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, Audio Anschlüsse: 3.5mm, Card Reader: SD, 1 Fingerprint Reader
Netzwerk
802.11 a/b/g/n/ac (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 5.0
Abmessungen
Höhe x Breite x Tiefe (in mm): 18.4 x 382 x 256
Akku
57 Wh Lithium-Polymer
Betriebssystem
Microsoft Windows 10 Pro 64 Bit
Kamera
Webcam: HD 720p
Sonstiges

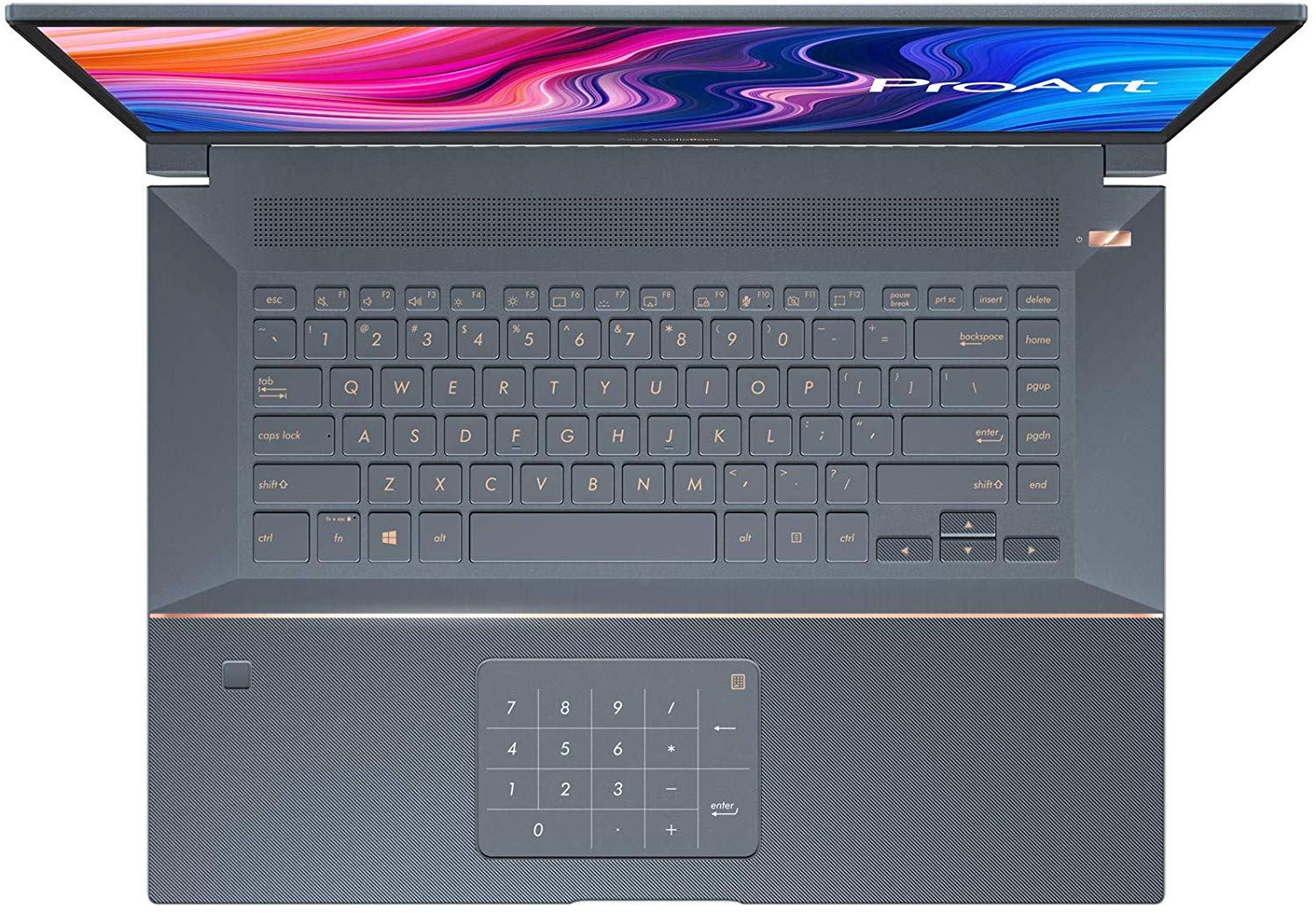

Lautsprecher: Stereo, Tastatur: Chiclet, NumPad Option, Tastatur-Beleuchtung: ja
Gewicht
2.39 kg



Preisvergleich

Bewertung: 80% - Gut
Durchschnitt von 2 Bewertungen (aus 2 Tests)

Testberichte für das Asus ProArt StudioBook 17 H700GV RTX 2060, Xeon E-2276M

80% ASUS ProArt StudioBook 17 H700GV review (Xeon E-2276M, RTX 2060)
Quelle: Ultrabook Review Englisch EN→DE Archive.org version
The ProArt StudioBook H700GV is the nearly identical twin of the StudioBook Pro W700G3T. One gets consumer RTX GeForce graphics, the other professional RTX Quadros, and given the fact these are both 17-inch mobile workstations and sell for the same kind of money for matching configurations at the time of this article, I don't see why anyone would pick the non-Pro over the Pro. That doesn't mean this is not a solid product, it is, but a Quadro chip just makes more sense in this class.
Einzeltest, online verfügbar, Sehr Lang, Datum: 19.03.2020
Bewertung: Gesamt: 80%
80% ASUS ProArt StudioBook 17 H700GV review (Xeon E-2276M, RTX 2060)
Quelle: Ultrabook Review Englisch EN→DE Archive.org version
The ProArt StudioBook H700GV is the nearly identical twin of the StudioBook Pro W700G3T. One gets consumer RTX GeForce graphics, the other professional RTX Quadros, and given the fact these are both 17-inch mobile workstations and sell for the same kind of money for matching configurations at the time of this article, I don't see why anyone would pick the non-Pro over the Pro. That doesn't mean this is not a solid product, it is, but a Quadro chip just makes more sense in this class.
Einzeltest, online verfügbar, Sehr Lang, Datum: 13.03.2020
Bewertung: Gesamt: 80%

Kommentar

NVIDIA GeForce RTX 2060 Max-Q: Mid-Range Notebook-Grafikkarte basierend auf die normale und Desktop RTX 2060 jedoch mit deutlich verringerten Taktraten und Stromverbrauch.

Diese Grafikkarten sollten alle modernen Spiele flüssig darstellen können. Anspruchsvolle Spiele müssen jedoch in mittlerer Detailstufe gespielt werden. Ältere und weniger anspruchsvolle Spiele wie die Sims Serie können auch in hohen Detailsstufen flüssig dargestellt werden.

» Weitere Informationen gibt es in unserem Notebook-Grafikkartenvergleich und der Benchmarkliste.


E-2276M: Auf der Coffee-Lake-Architektur basierender SoC (System-on-a-Chip) für große Notebooks. Integriert unter anderem sechs CPU-Kerne mit 2,8 - 4,7 GHz und HyperThreading sowie eine Grafikeinheit und wird in 14-Nanometer-Technik gefertigt.» Weitere Infos gibt es in unserem Prozessorvergleich Vergleich mobiler Prozessoren und der Prozessoren Benchmarkliste .
